Multi functional Dry Rice Noodle Cake production line

Short Description:

Product model:QZDKZGF-750

Summary information:This production line is suitable for the industrial production of rice noodles such as Jiangxi rice noodles, Guilin rice noodles, Liuzhou snail noodles, Changde rice noodles, Yunnan cross-bridge rice noodles, etc. It meets the full process from rice feeding to forming, cutting and drying. With rice as the main raw material, the water content is 14-15%, which meets the product demand of 18 months of shelf life after fresh-keeping treatment.

Applicable products:Rice noodles such as Jiangxi rice noodles, Guilin rice noodles, Liuzhou snail noodles, Changde rice noodles, Yunnan cross-bridge rice noodles, etc.

Production location:Qingdao China

Send email to us

Product Detail

Product Tags

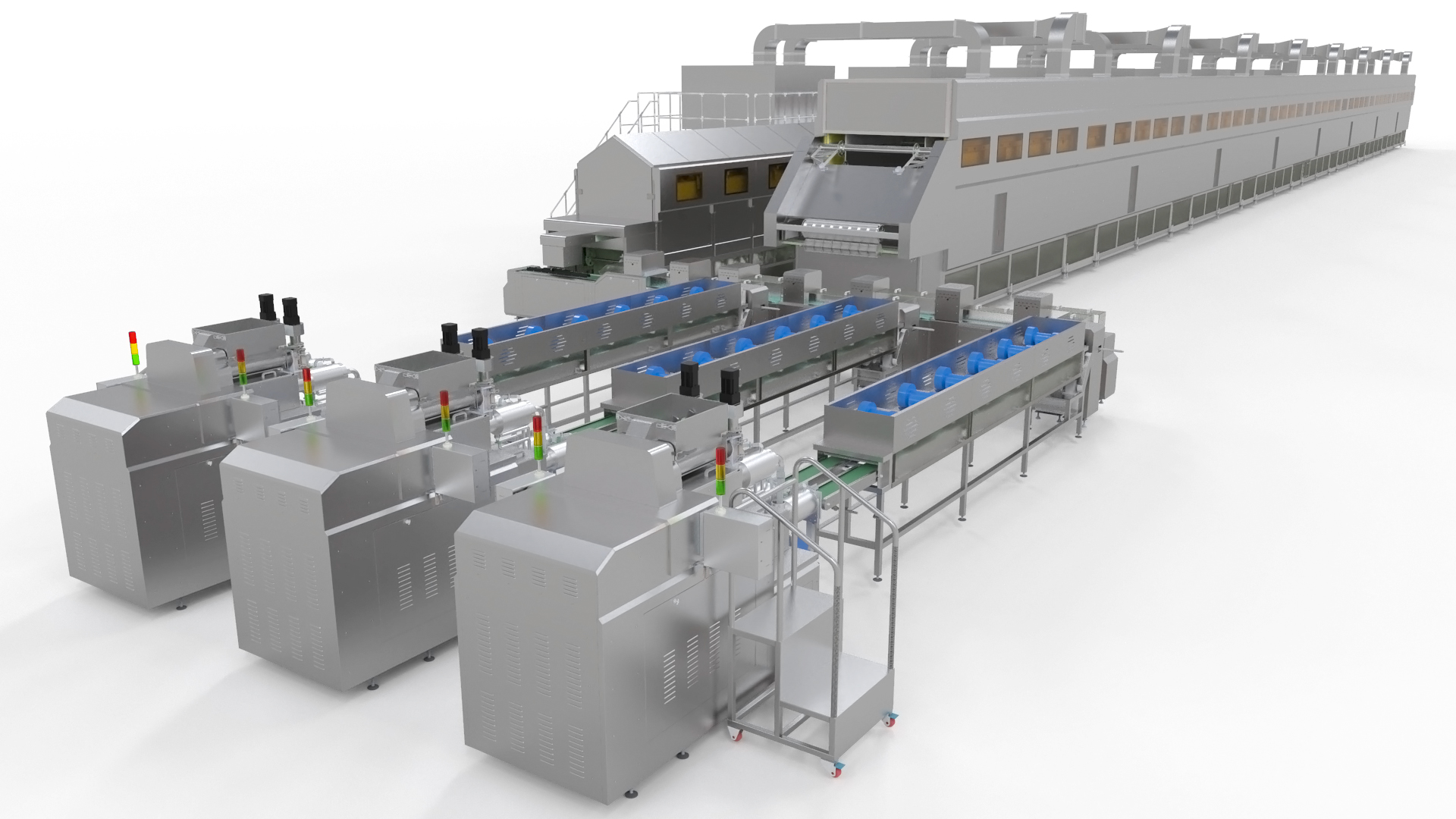

Product Overview

1.The PLC intelligent rice mixing system fundamentally solves the problem of accurate formula.
2.The PLC intelligent control of the front-end rice washing, soaking, crushing, and powder mixing system reduces labor intensity, and quantitative control improves moisture accuracy.
3.The self-cooking extruder can achieve a degree of maturity of more than 83%, and the extrusion thickness and speed are uniform. The PLC intelligent drying room can adjust the internal temperature and humidity in real time, and the increase of the temperature and humidity layout can make the drying of the Rice noodle cake directly packaged.

Equipment parameters

Capacity	Labor	Water consumption	Electric consumption	Air consumption
250 kg/hour *3 set = 750 kg/hour	6~7 staffs from rice supply to drying room	1~1.2 tons/ton rice noodle	380 kw*h/ton rice noodle	1.6~1.8 ton/ton rice noodle

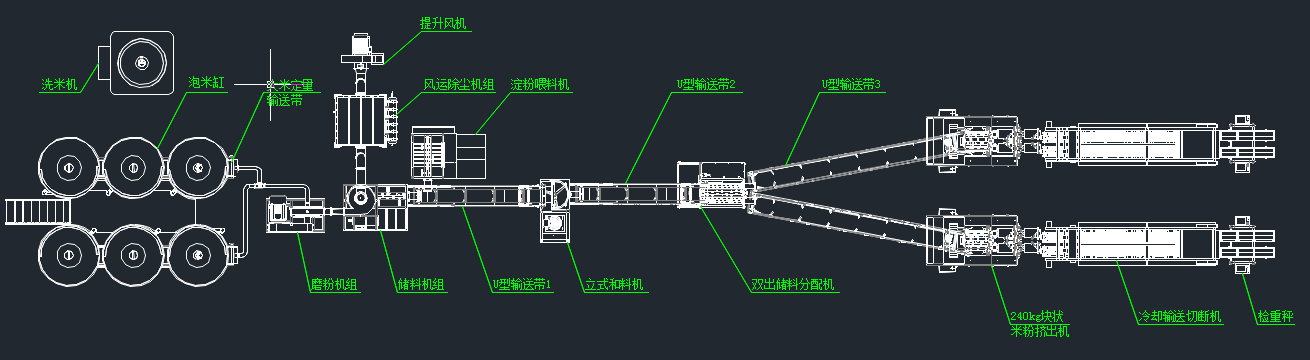

Product Layout

Technological process

Rice supply

Microfermentation soaking

Washing

Draining

RIce conveying

Rice crushing

Conveying

Weighing

Cutting and forming

Self-cooking and extruding

Pulp storage

mixing

Conveying

Aging

Drying

Moderate temperature Moisturizing

Finished products

Service content

Production process training

Formula process services

Sterilization process and R&D services

Anti-aging process and formulation services

Production testing operation training service

On-site production line operation guidance service

Equipment and process technology upgrade services

Equipment and process customization and transformation services

Production line, process after-sales service

Integrated project services

Introduction to Core Equipment

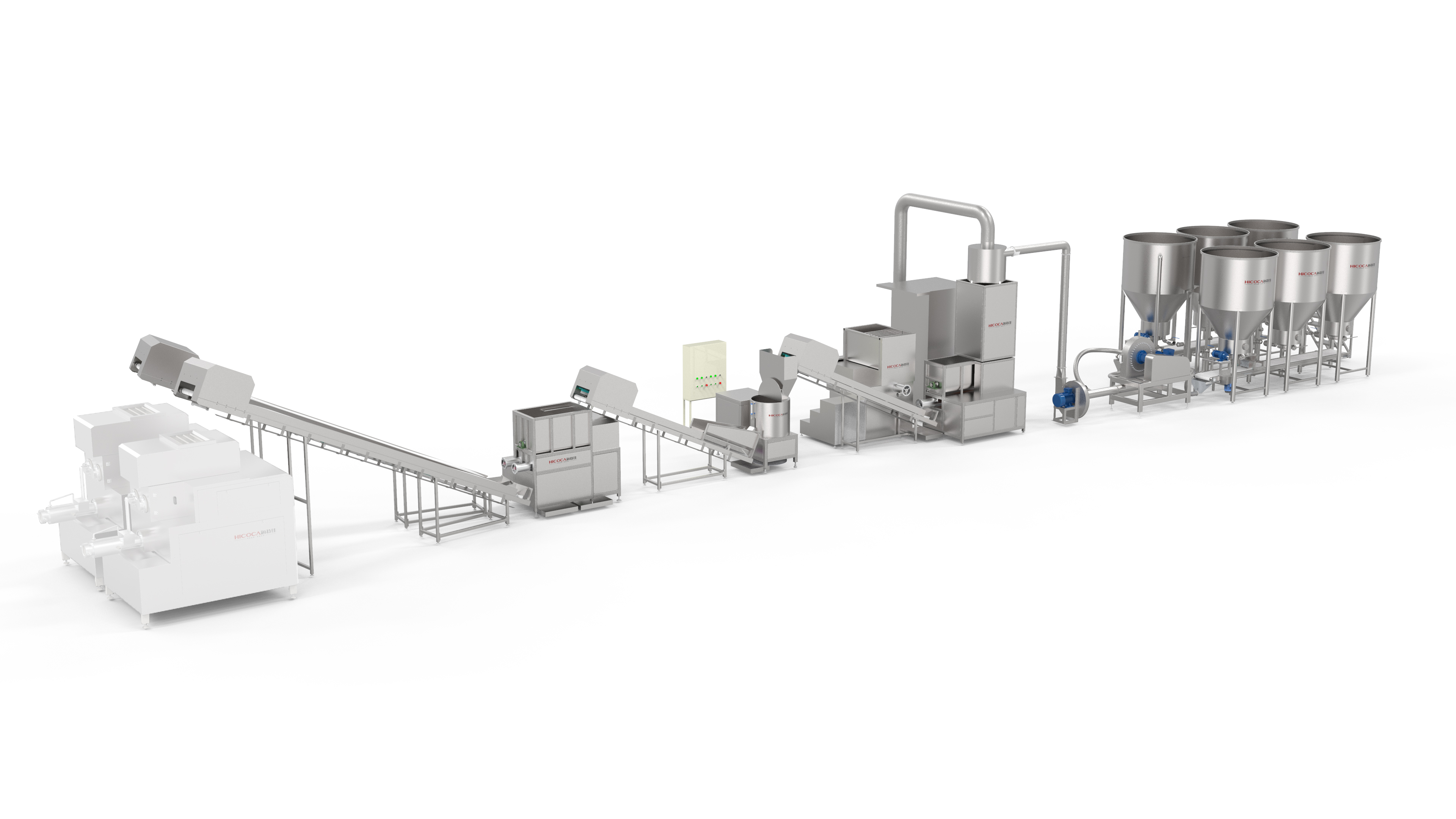

Rice pre-processing system (milling)

The intelligent control rice mixing system fundamentally solves the problem of accurate formula PLC intelligently controls the front-end rice washing, soaking, crushing, and powder mixing systems, and quantitative control improves moisture accuracy.
