Fully Automatic Straight Dried Rice Noodle production line

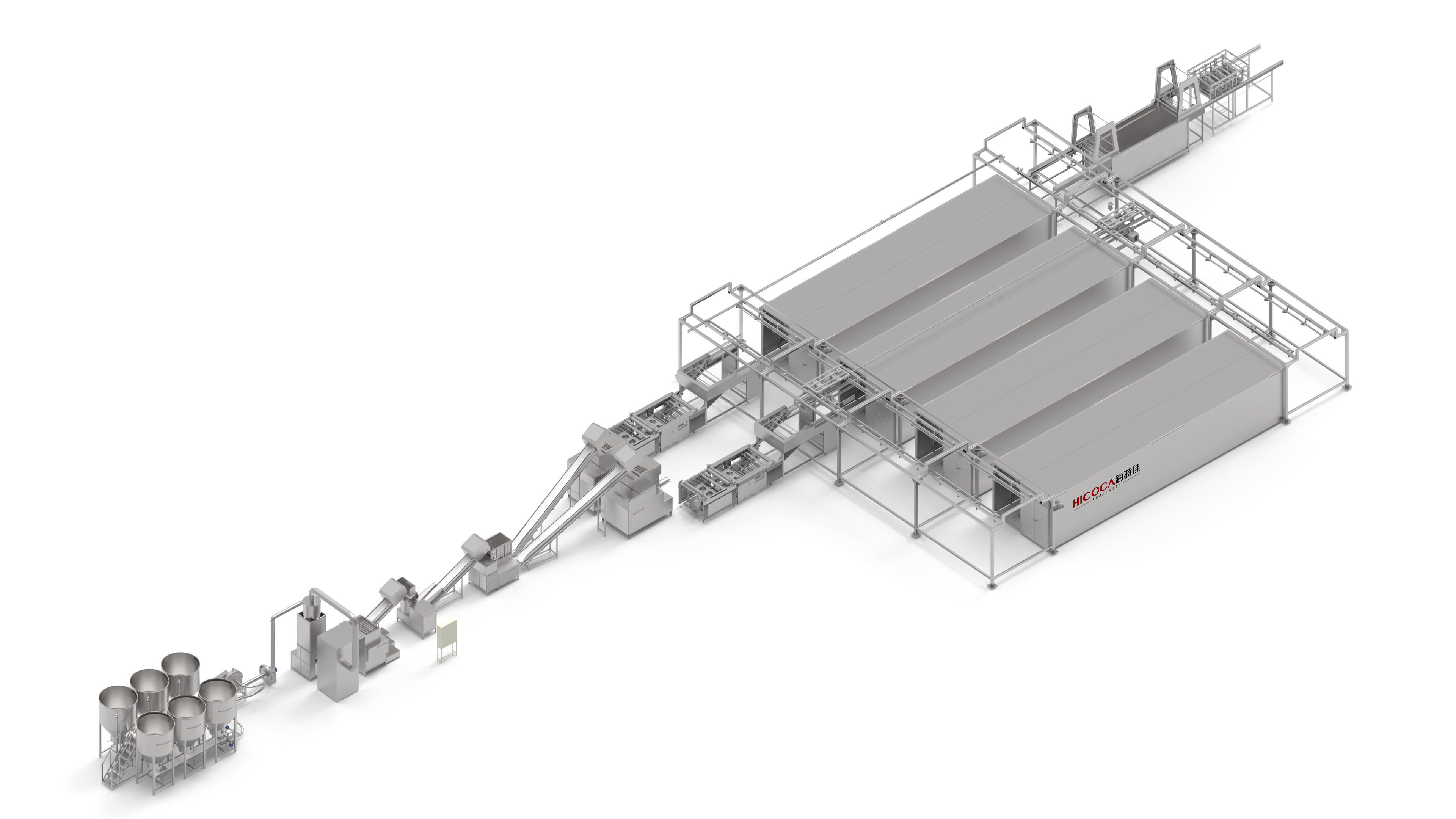

Product Overview
1.The PLC intelligent rice mixing system fundamentally solves the problem of accurate formula.
2.The PLC intelligent control of the front-end rice washing, soaking, crushing, and powder mixing system reduces labor intensity, and quantitative control improves moisture accuracy.
3.The double extrusion and double box design increases the production capacity to 800kg/h.
4.The PLC intelligent drying room controls the internal temperature and humidity in real time, and the dried powder is directly cut off.
Equipment parameters
|
Labor |
Water consumption |
Electric consumption |
Air consumption |
|
16 staffs from rice supply to packaging |
1.5 tons/ton rice noodle |
320~340 kw*h/ton rice noodle |
1.1~1.3 ton/ton rice noodle |
Product Layout
Technological process
Rice supply
Rice washing, soaking and draining
Rice crushing and powder storage
Powder mixing
extruding
Drying
rubbing
Aging
Hanging rod
Cutting and shaping
spreading
Cutting
Automatic weighing
Automatic packaging
Finished products
Service content
01
Production process training
02
Formula process services
03
Sterilization process and R&D services
04
Anti-aging process and formulation services
05
Production testing operation training service
06
On-site production line operation guidance service
07
Equipment and process technology upgrade services
08
Equipment and process customization and transformation services
09
Production line, process after-sales service
10
Integrated project services
Introduction to Core Equipment
Rice pre-processing system (milling)
The intelligent control rice mixing system fundamentally solves the problem of accurate formula
PLC intelligently controls the front-end rice washing, soaking, crushing, and powder mixing systems, and quantitative control improves moisture accuracy.

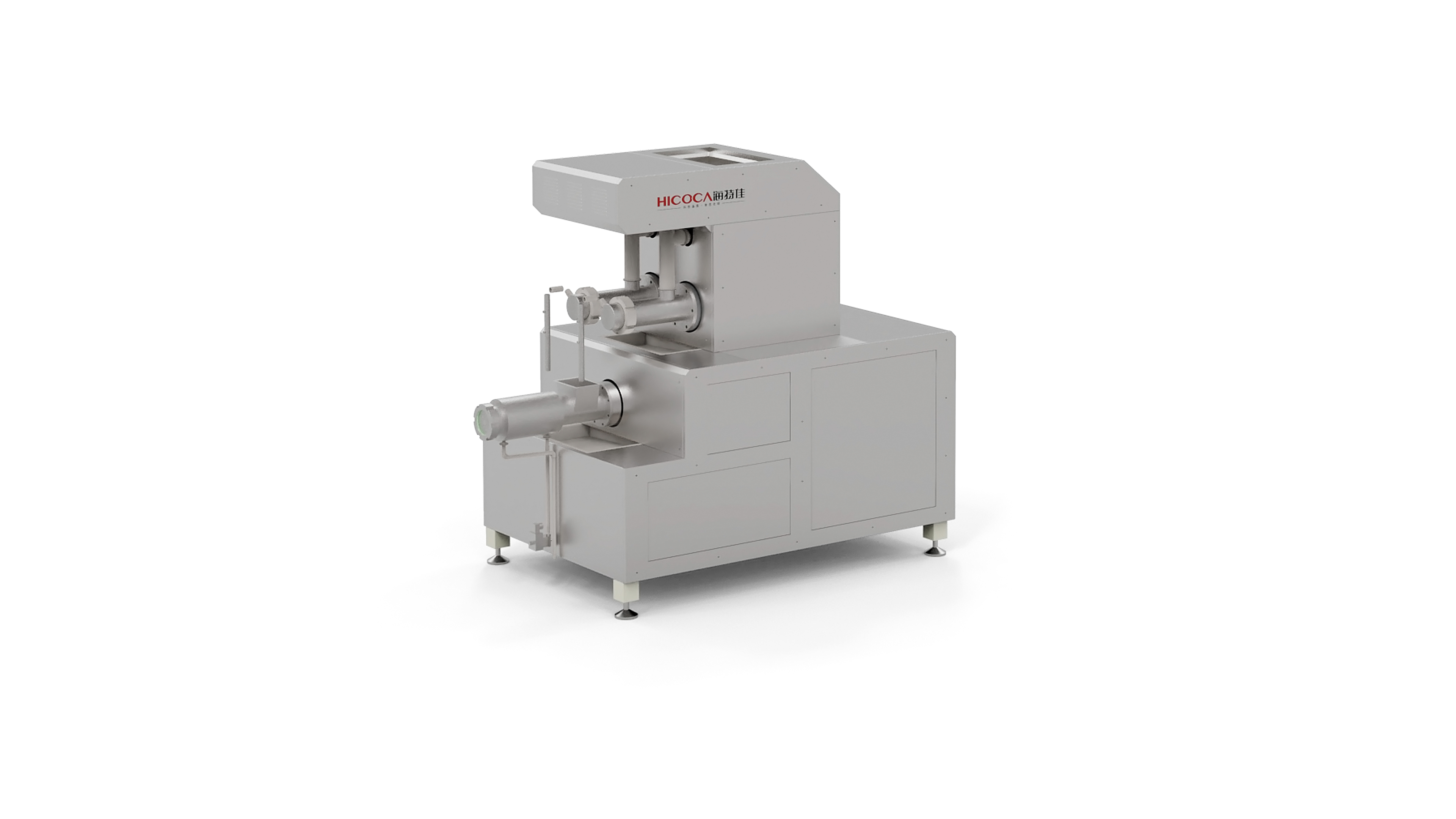

Rice noodle extruding machine
Using double-cylinder maturation and single-cylinder extrusion mode, the hourly production capacity can reach 400kg
High extrusion efficiency and good strip stability
Using split screw roller mode, the cylinder and screw roller are easy to clean

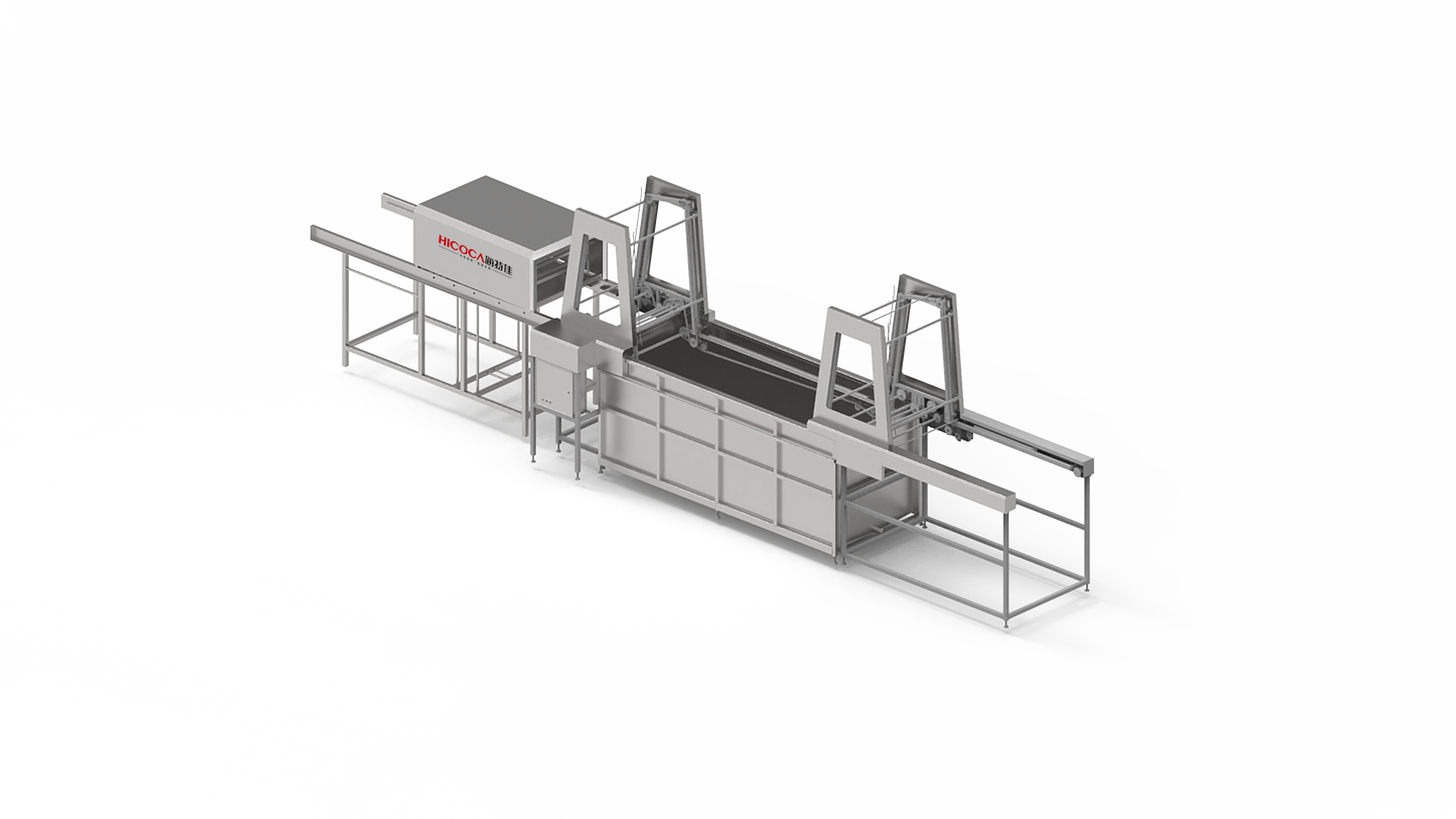

Spreading machine

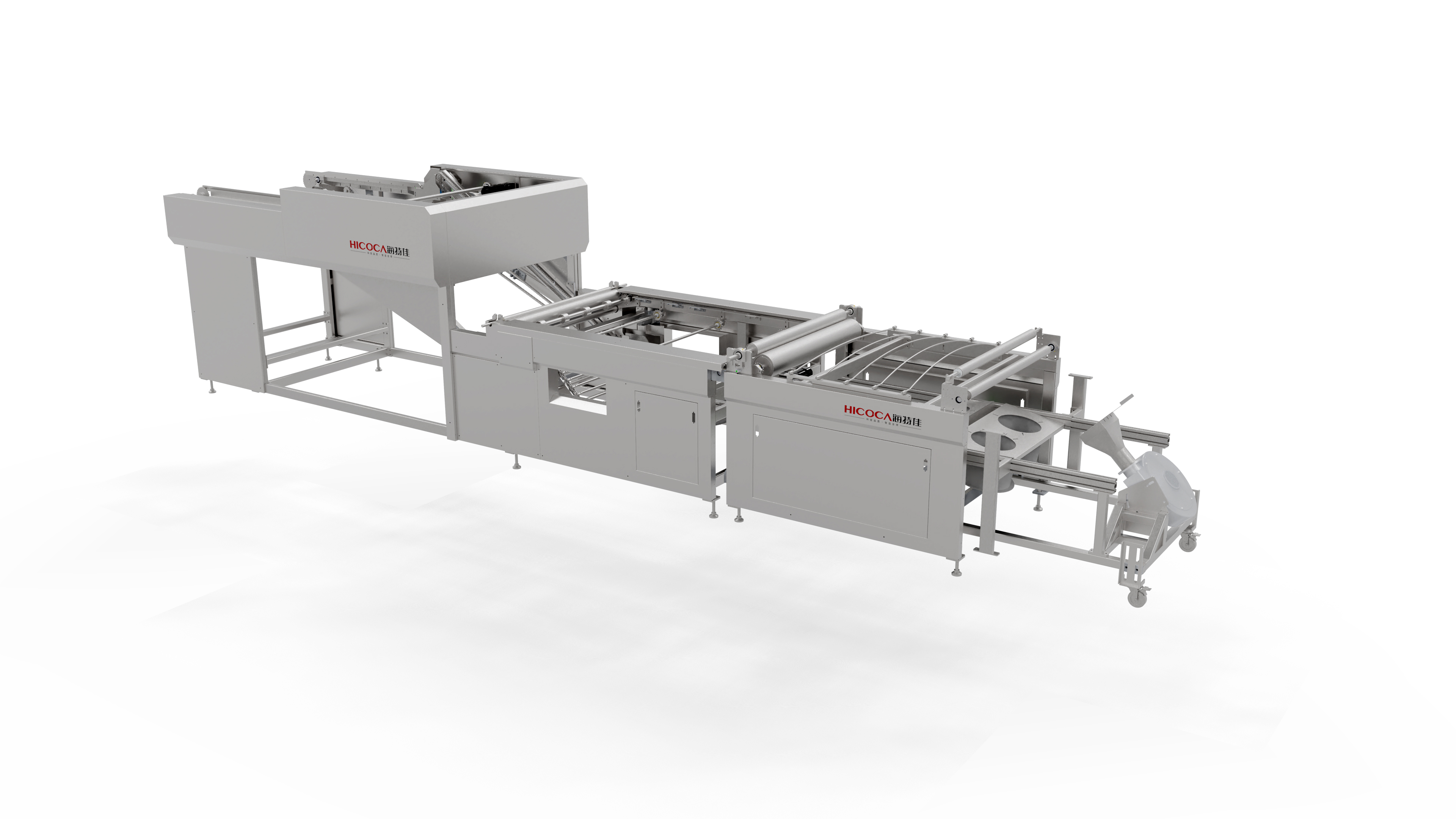

Cutting and hanging rod machine
The automatic cutting and hanging rod machine for rice vermicelli has high production efficiency and low loss, and realizes continuous production of rice vermicelli. After the rice vermicelli is cut and formed, it is quickly hung on the rod and enters the next process.

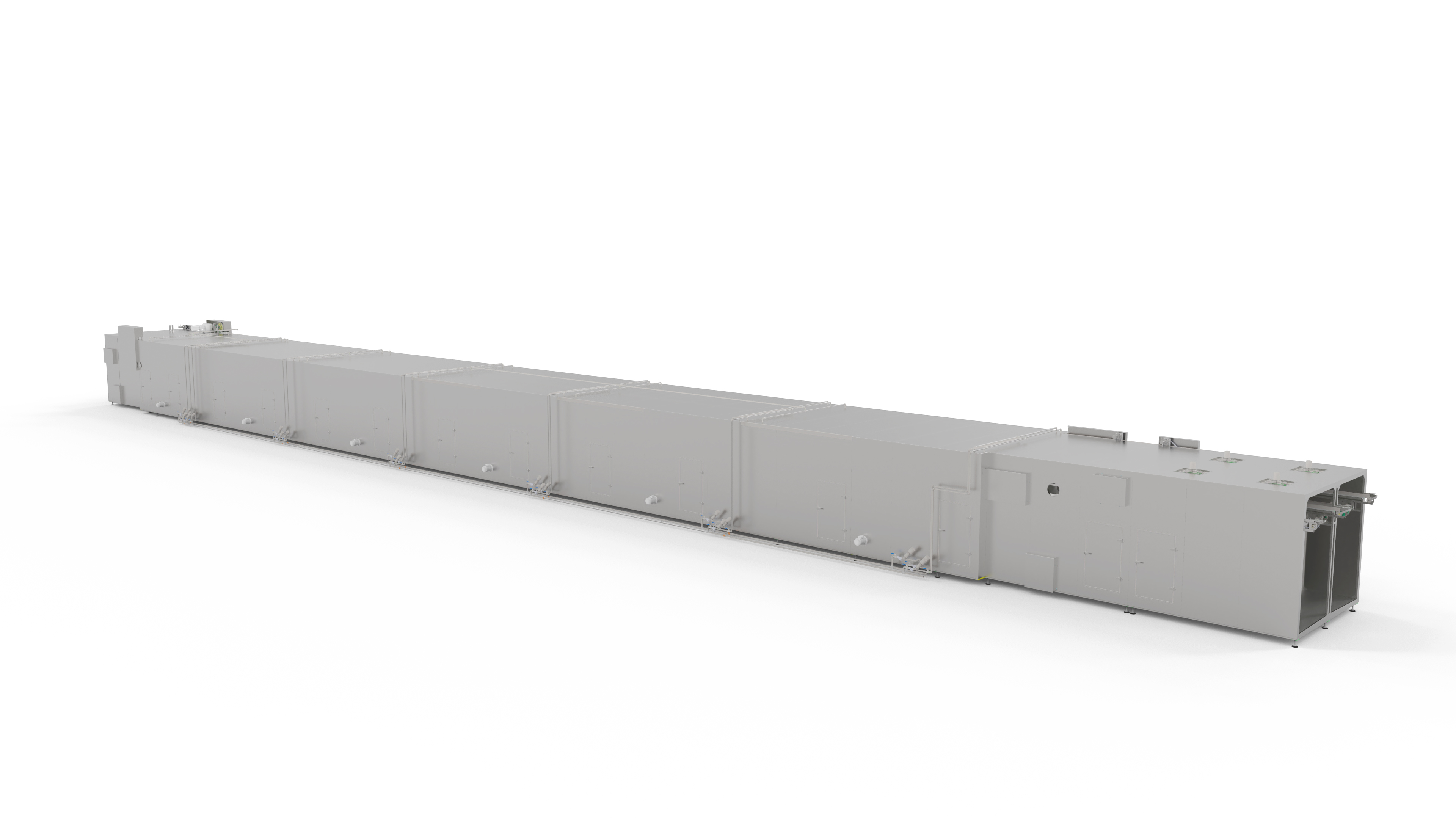

Traditional Aging box
Advanced technology, reasonable equipment structure, beautiful appearance, large production capacity, stable product quality, intelligent control, easy operation and low labor intensity.
