Fully Automatic Fresh Wet flat Rice Noodle production line

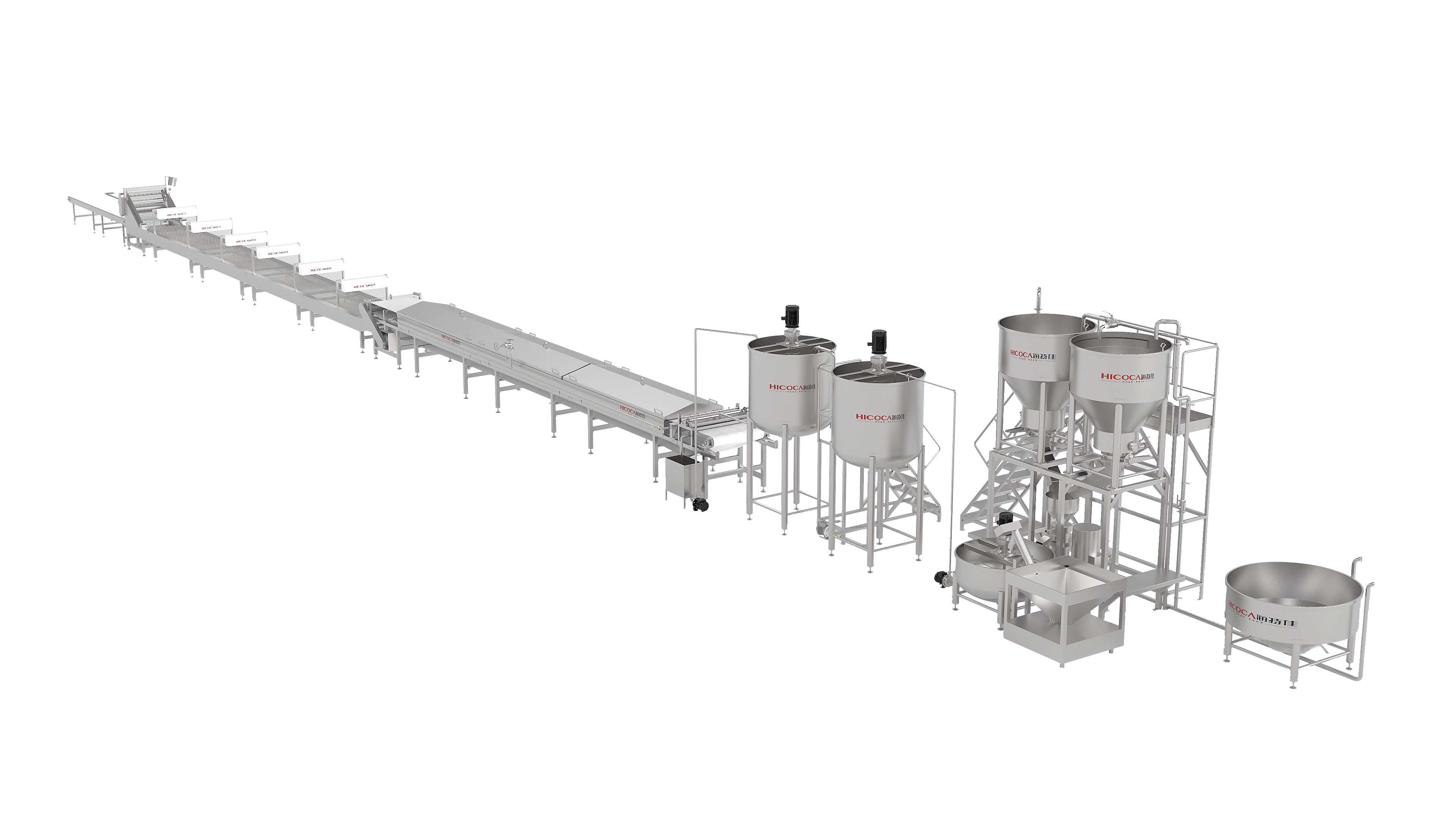

Product Overview
1.With advanced technology, reasonable structure, reliable performance and intelligent operation, the rice noodles is bouncy and have delicate and chewy taste..
2.Steam source heating is used to improve thermal efficiency, promote energy conservation and environmental protection, and reduce emissions.
3. PLC control system, high degree of automation, intelligent and efficient.
Equipment parameters
|
Capacity |
Labor |
Water consumption |
Electric consumption |
Air consumption |
|
1000 kg/hour |
4-5 staffs from rice supply to cutting section |
4-4.5 tons/ton rice noodle |
165 kw*h/ton rice noodle |
0.2~0.3 ton/ton rice noodle |

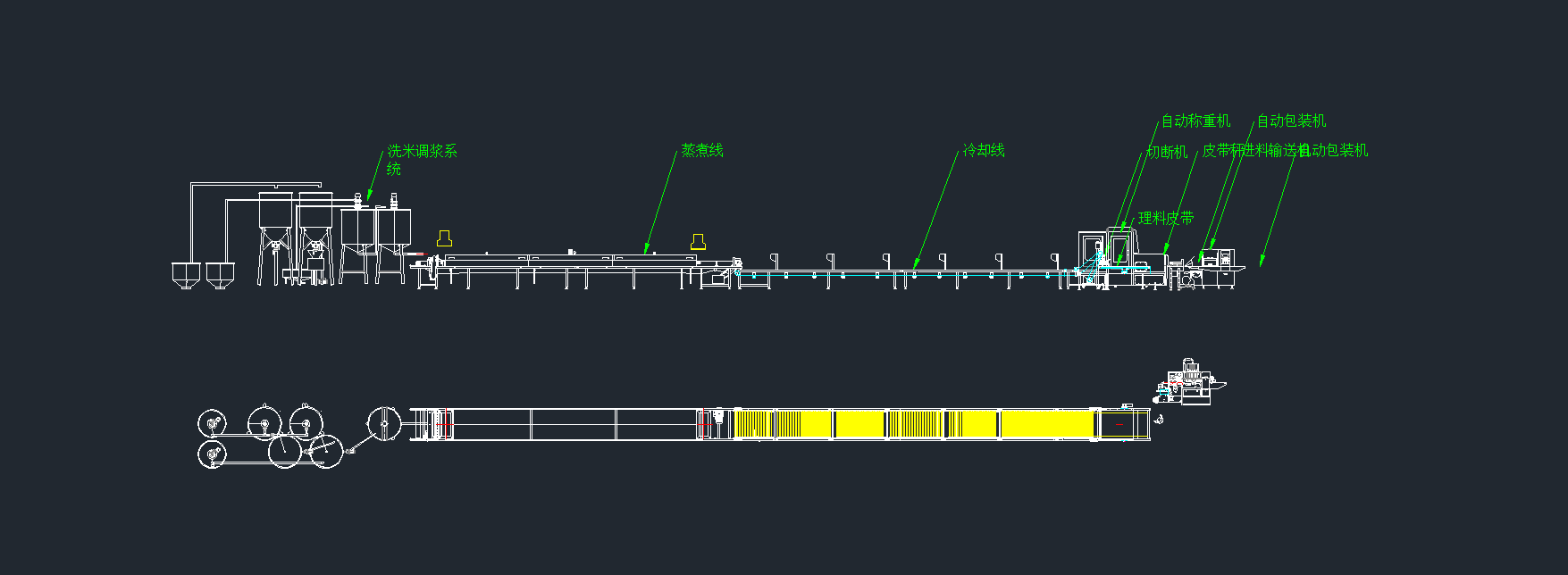

Product Layout
Technological process
Rice soaking
Rice washing
Rice grinding
Pulp filtering and Pulp mixing
Pulp storage
Cutting
Cooling
Steaming
Pulp spreading
Service content
01
Production process training
02
Formula process services
03
Sterilization process and R&D services
04
Anti-aging process and formulation services
05
Production testing operation training service
06
On-site production line operation guidance service
07
Equipment and process technology upgrade services
08
Equipment and process customization and transformation services
09
Production line, process after-sales service
10
Integrated project services
Introduction to Core Equipment

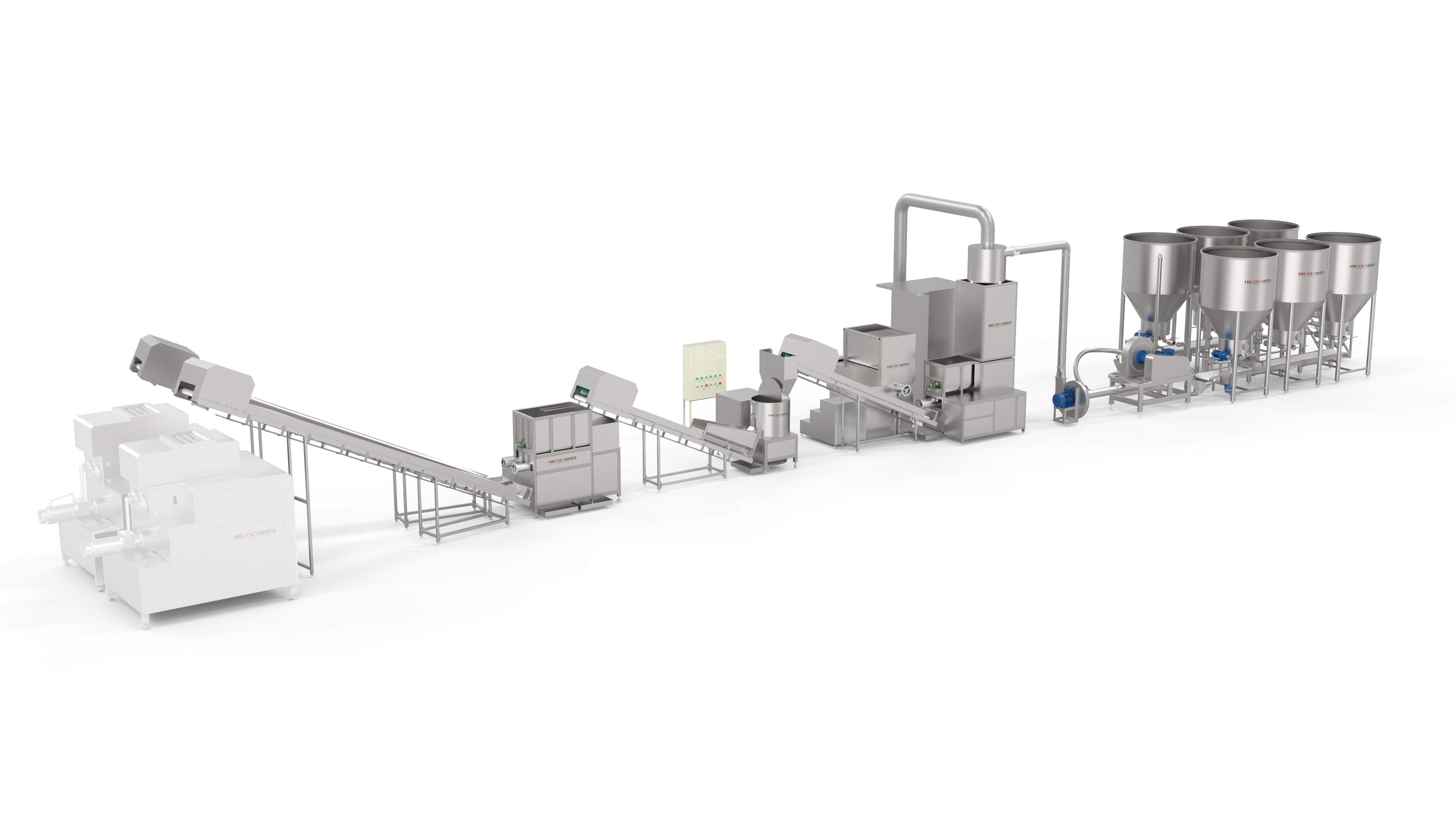

Rice pre-processing system (milling)
The intelligent control rice mixing system fundamentally solves the problem of accurate formula
PLC intelligently controls the front-end rice washing, soaking, crushing, and powder mixing systems, and quantitative control improves moisture accuracy.

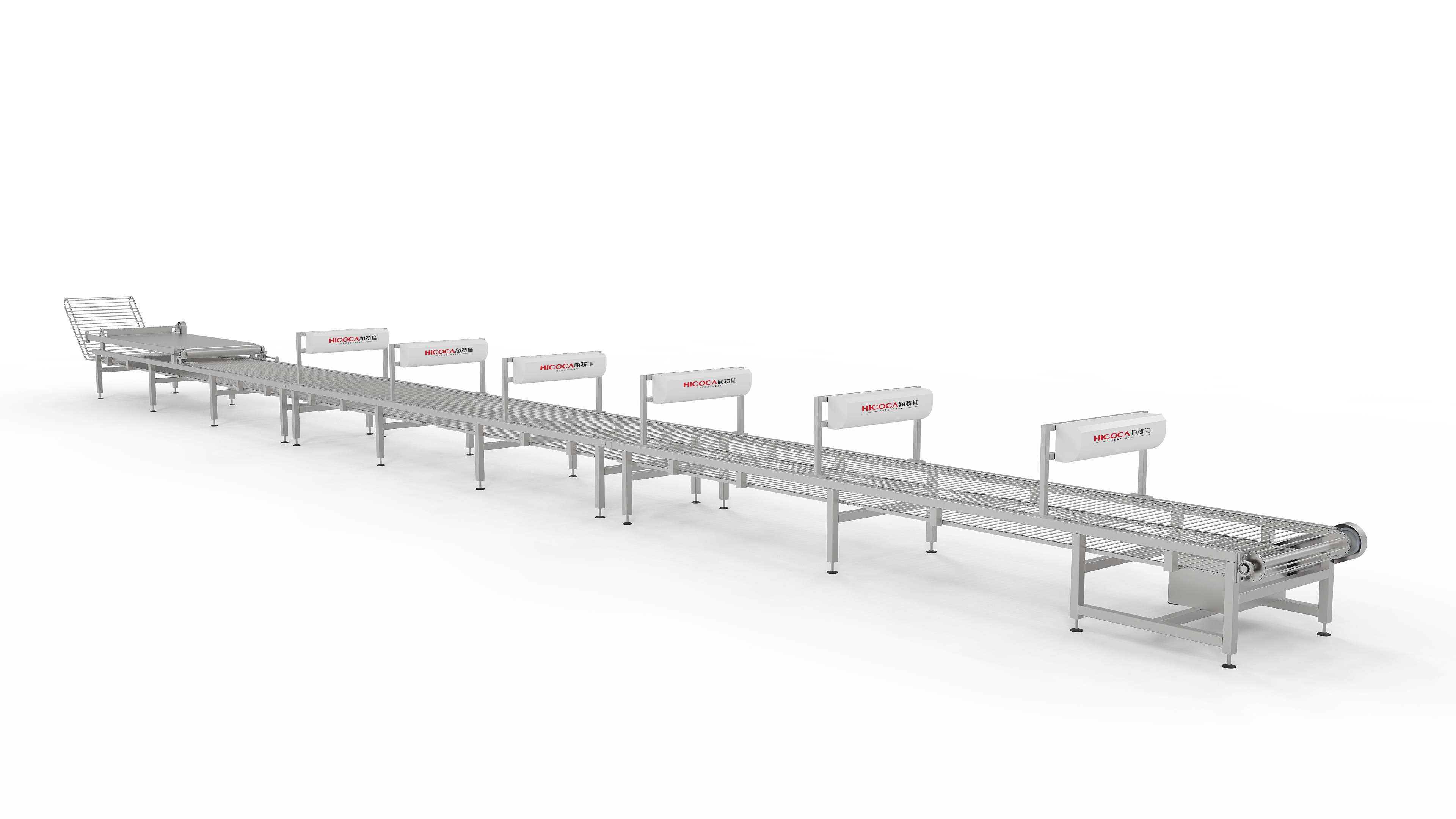

Cooling and conveying machine
Cutting machine

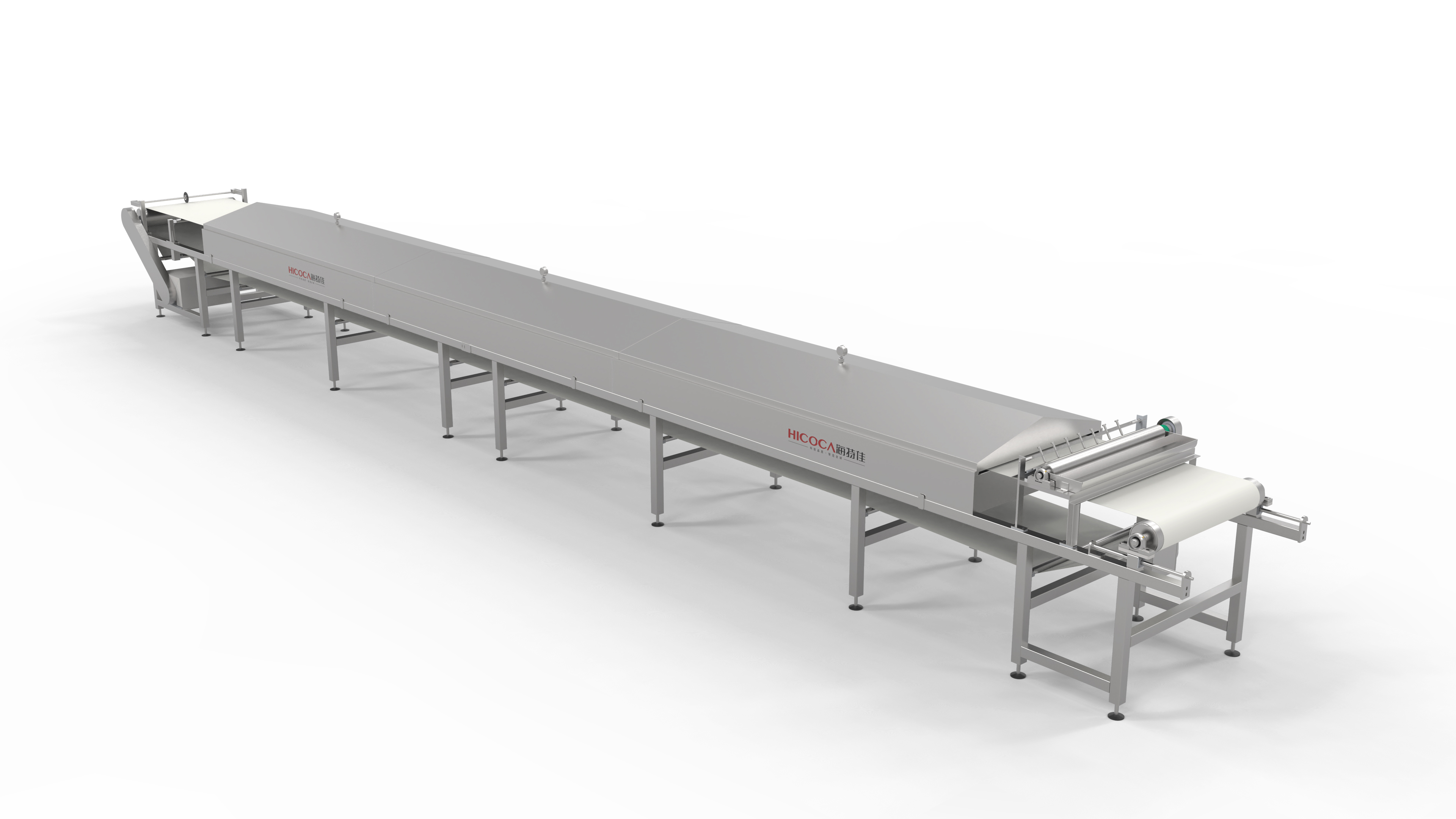

Spreading and steaming machine
