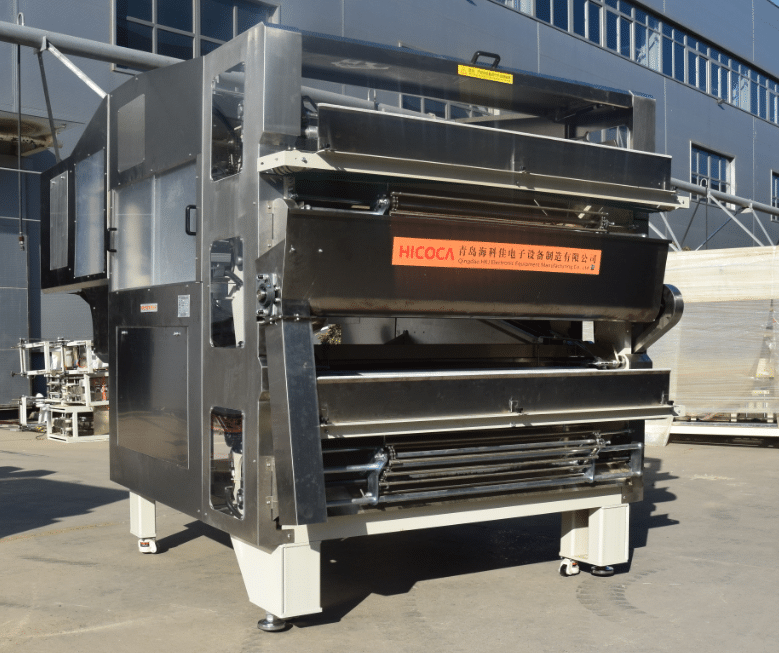

Double Layer High Speed Stick Noodle Cutting Machine
Contains
1, cutting device ---one set
2, noodle unloading device —one set
3, conveyor ---one set
Application: Connecting with noodle production line, automatically finish the process of cutting noodle to the requested length.
Advantage:
1, cutting length controlled with servo motor, easy setting and operating ,high accuracy.
2, straight cutting without any fragment,with high cutting accuracy
3, with the extremity separating device, avoid the extremity be packed into the package.
Technical specification
| Voltage: | AC220V |
| Frequency: | 50-60Hz |
| Power: | 3; 4.5(1500)kw |
| Gas consuming: | 3L/min |
| Cutting speed: | 14-18 times/min |
| Cutting size: | 180-260mm |
| The maximum size of the machine: | 370*2150*1500mm |
The main parameters
Roller width: 350mm
Capacity: up to 500kg flour/hour
Power; 5.5kw
Equipment size: length 2000×width 1020×height 1510mm
Operation environment
Site requirements: The equipment should be established inside the room with flat floor. No shaking and bumping.
Floor requirements: it should be hard and non-conductive.
Temperature: -5~40℃
Relative humidity: ＜75%RH, no condensation.
Dust: no conductive dust.
Air: no flammable and combustible gas or objects,no gas which can make damage to mental.
Altitude: under 1000 meters
Ground connection: safe and reliable ground environment.
Power grid: stable power supplying, and volatility within +/-10%.
Other requirements: keep away from rodents
