Automatic Pouch Dispenser machines
Features
The Automatic Pouch Dispenser can cut pouches in row one by one (or cut by couples as you like), and dispense them onto the conveyer accurately. It can also follow the conveyer’s speed automatically, so as to dispense pouch onto the right place no matter how the speed changes.
Standard Features
(1) High efficiency: Automatically pouch feeding, cutting and dispensing;
(2) Health: Machine dispensing avoiding manual touching;
(3) High Adjustability: Suitable pouches of varied dimensions, rapid to change different sizes of pouches;
(4) Easy to operation and adjustment: Simple and perfect interface, safety and convenient, perihelia component are scientific and rational designed, convenient to clean and maintain;
(5) Friendly interface, function and running key independently control;
(6) Online adjustment of cutting and dispensing place;
(7) Automatically alarm;
(8) Can change over at will between inter and outer control;
Specification
| Name of equipment | Automatic Pouch Dispenser |
| Capadlitity/model | FS-ZTB-T |
| Manufacturing speed | 0～180pouch/minute |
| Bagging size (millimeters) | length ：length ：20～90 Width：15～90(mm) |
| Power(kilowatts) | 200-220VAC single-phase 50HZ/60HZ 800W |
| Accuracy of cutting position | ±1.0mm |
| Outline Dimensions | 640 (L)×678 (W)×1520(H)mm） |
| Weight(kilograms) | N.W. 85KG G.W.130KG |
| Material | SUS304 Stainless steel |

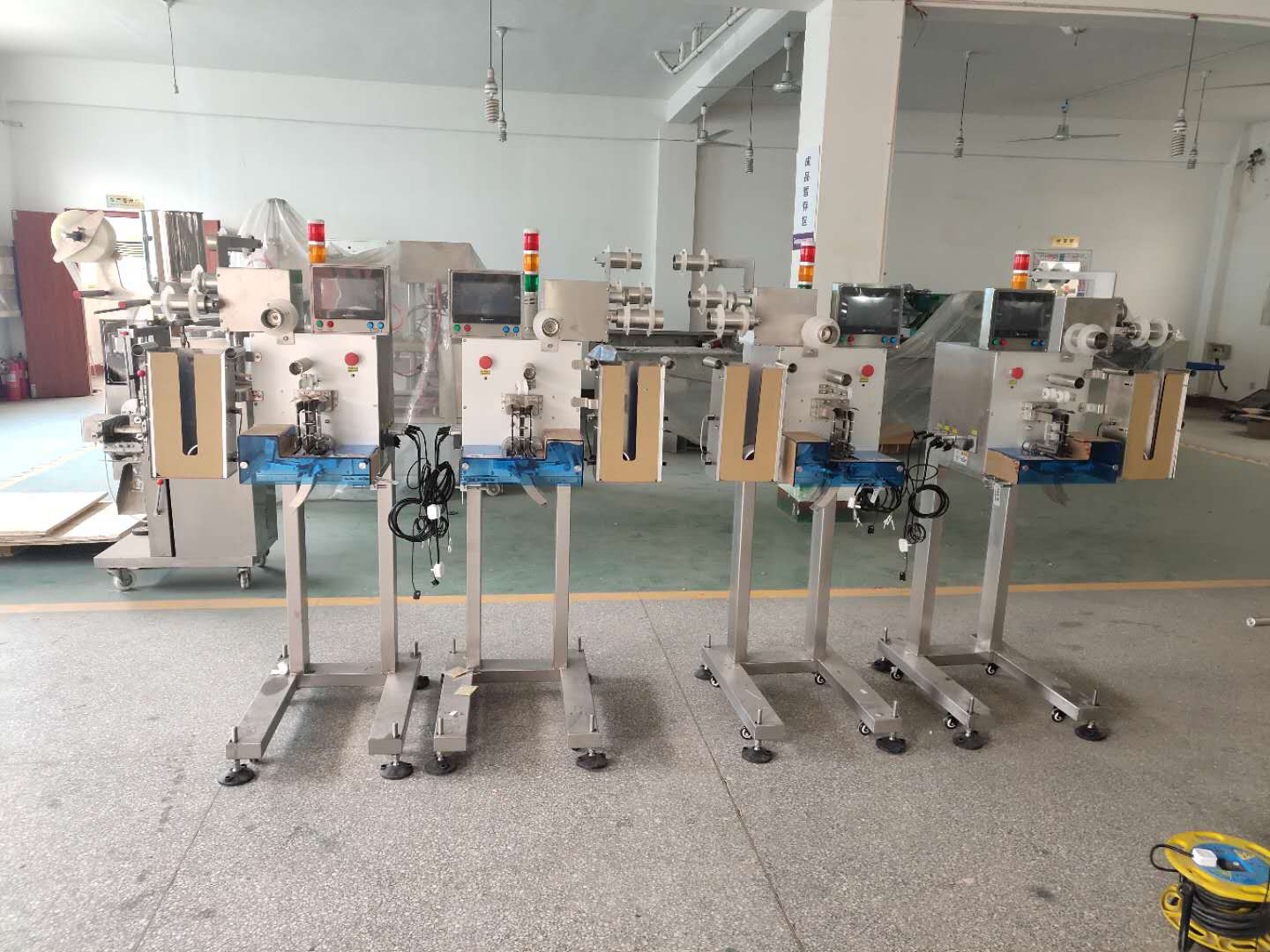

Picture of machine
